Product Introduction
The broadcasting must use the no fan silent high power LED Video Panel Light. To meet this request, we have designed this new 100W no fan led video panel light. It’s 3200-5600K color temperature adjustment. This light is very suitable for large-scale tv station, studio, multi-function room and other video places.

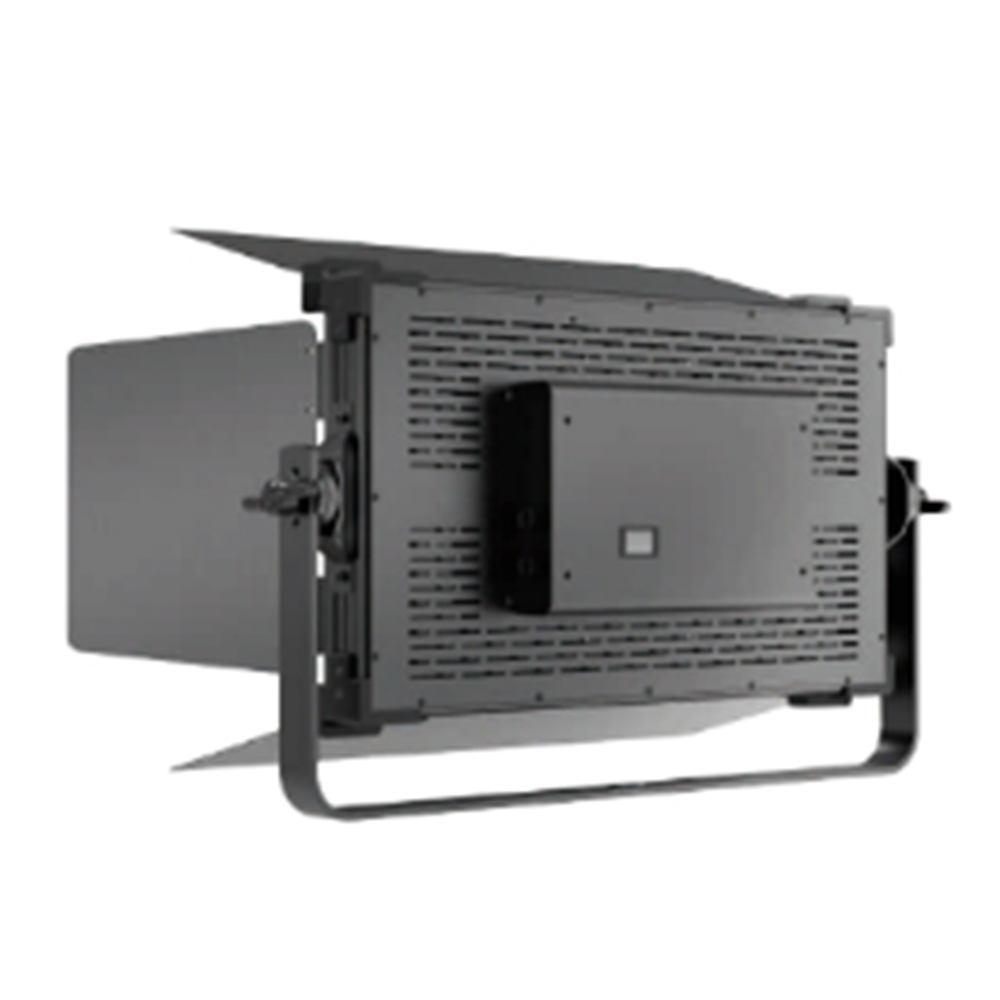

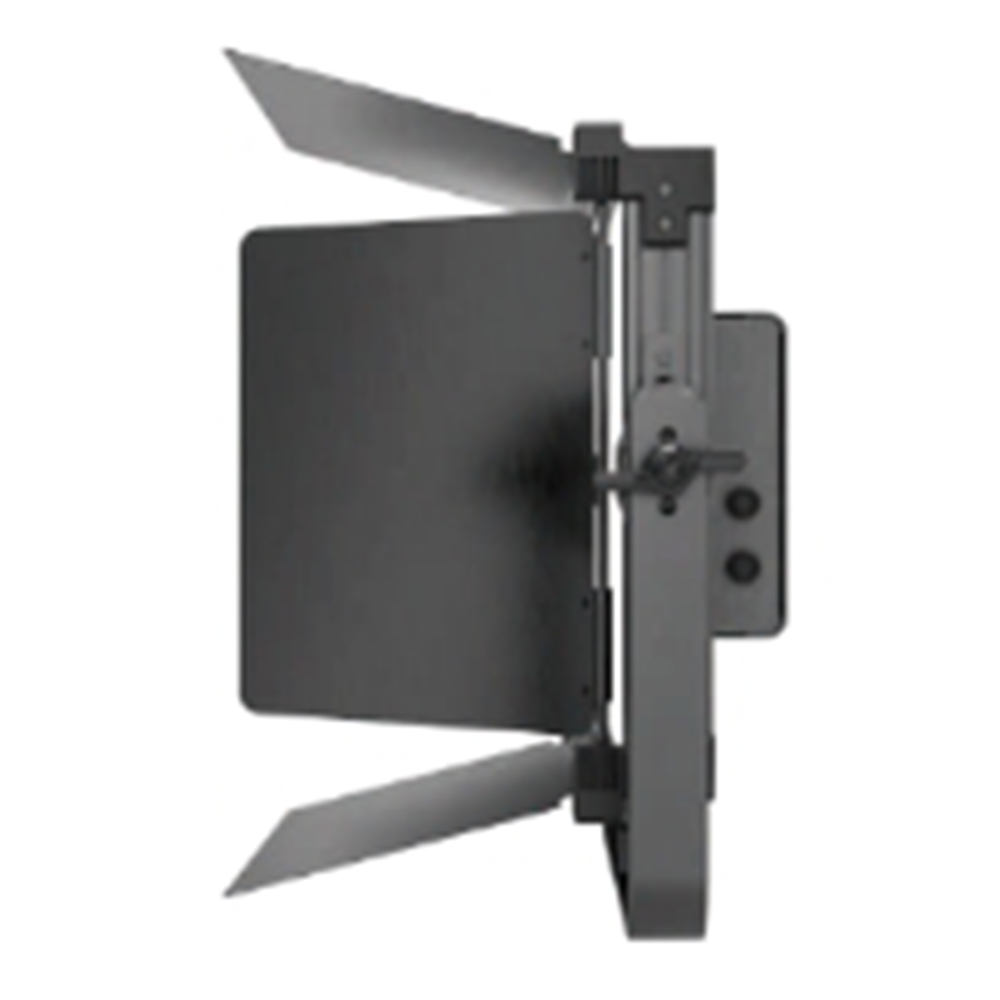

The housing is slim and light weight design, you can take it anywhere easily. it is very convenient to install, no matter any high place. U-shape support and light stand mount, making it ready for worldwide use.
Fanless cooling system, considering some occasions request very quite equipment without any noise , that's why we design its cooling without fan. But pls don't worry the cooling of it, we have intelligent temperature controlling system design in the software it will protect this light for long time using.
Features
● The light’s lighting function is controlled by DMX-512, very convenient;
● Color temperature: 3200K-5600K adjustable;
● The light body adopts outside frame design, the modeling is beautiful, installation very convenient, safe and reliable.
Light Sources
● LED: 576pcs warm white and 575pcs cold white 0.2W LED bead chips
● Color: from warm white to cold white
Optics
● Beam angle: 120degree
● Dimmer: 0~100% linear dimmer
● CRI: Ra≥95
● Color temperature: 3000k-6000k
Control
● DMX channel: 2CH
● Control mode: DMX-512, Demo mode, Manual
● Control panel: LCD display + 2 rotation buttons
Power Supply
● Related voltage : AC90V-240V, 50/60Hz
● Related power : 110W
Construction
● Body dimension: 62*36*12cm● Net weight: 6kg
● Shell color: black
● Housing material: Die casting Aluminum
Working Environment
● IP Rate: IP20
● Ambient temperature: -25-40℃
● Cooling: aluminum radiator, and a mute fan
● Noise: under 20db
Packing
● Product Size: 76*46*20cm(1pc/carton)
● Net weight: 10KG
● Gross weight: 12KG
