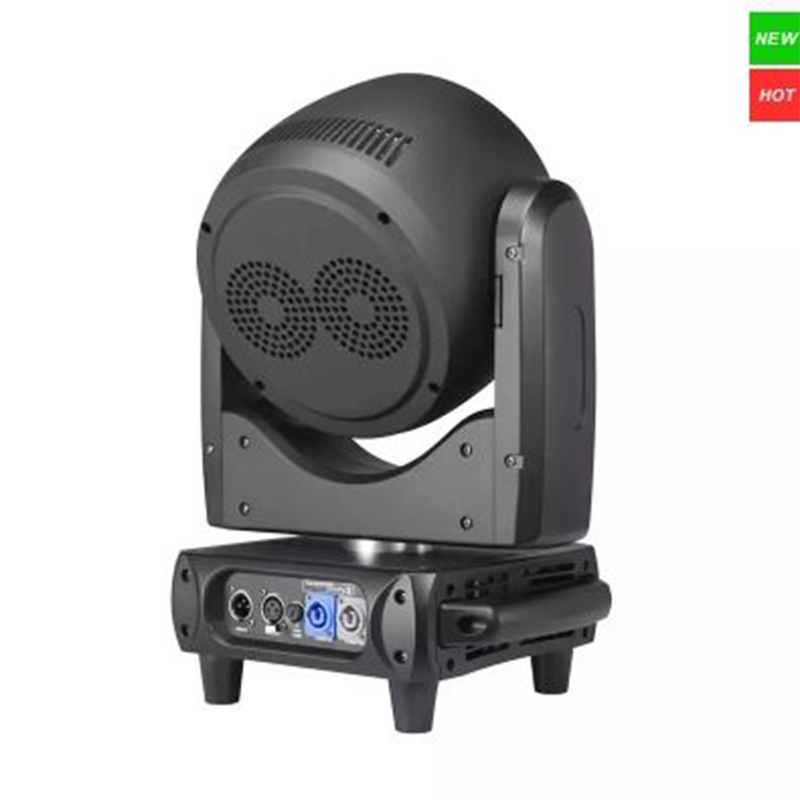

LED Wash Moving Head Light
01
Link to:
Product Introduction
● 7pcs 60W Stage Wash Led Moving Head Light is a novel design, flexible, small size and light weight zoom LED moving head washing light, Beam angle is 5°-50°, the zoom is smooth, fast and quiet. 7pcs 60W high-brightness and stable OSRAM 4in1 LED lamp beads (RGBW), organically combined with high-definition optical lens, uniform and soft light output, pure color mixing, and flicker-free control function design. The product features include variable speed closing light/strobe effect, built-in various self-propelled programs and macro function effects, which is simple and easy to use.
● It is a high-efficiency LED dyeing light that combines beam, image, and unique effect lights at the same time.Each LED light bead can be individually controlled to create colorful effects. Seamless splicing lens disk design (like honeycomb), aspheric lens structure. It makes the light spread more evenly when dyeing, and there are no gaps. The color temperature can be adjusted linearly, and the Osram single 40W RGBW lamp bead has a high color rendering index, which fully meets the requirements of TV broadcasting.
Features
● Wide zoom range from 5degree to 50degree;
● Extremely small, fast and powerful LED Moving Head Beam Zoom Light;
● The color temperature can be adjusted linearly;
● Perfect for stage, theatre, TV, studio, rental and discotheques.
Light Sources
● LED: 7pcs 60W 4in1 RGBW LED Lamps
● Lifespan: 500,000h
● Color: RGBW colorful mixing
Optical System
● Beam Angle: 10-60degree
● Dimmer: 0-100% linear dimmer
● Strobe: 1-25 times/second
Light Output
● Optimal projection distance: 4-30m
● Light output: 420W
● Noise: 48db
Movement
● Pan(X axis): 540degree, 8/16bit
● Tilt(Y axis): 270degree, 8/16bit
Control
● Control mode: DMX-512; Master/slave Mode; Demo mode.
● DMX channel: 17CH, 58CH
● Display of control panel: LCD display+ 4 buttons
Power Supply
● Related voltage: AC100V-240V, 50/60Hz
● Related power: 450W
Construction
● Body dimension: D315*W188*H395mm
● Net weight: 9.5kg
● Shell color: black
● Shell material: ABS
Working Environment
● Working temperature: -25-40℃
● Cooling: Fan
● Protection rating: IP20
Standard Configuration Spare Part List
● Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)
● User manual: English version user manual
● Clamp bridge: 1 set clamp bridge
Package
● Product Size: 330x200x425mm
● Net weight: 11.5kg
