LED Wash Moving Head Light
01
Link to:
Product Introduction

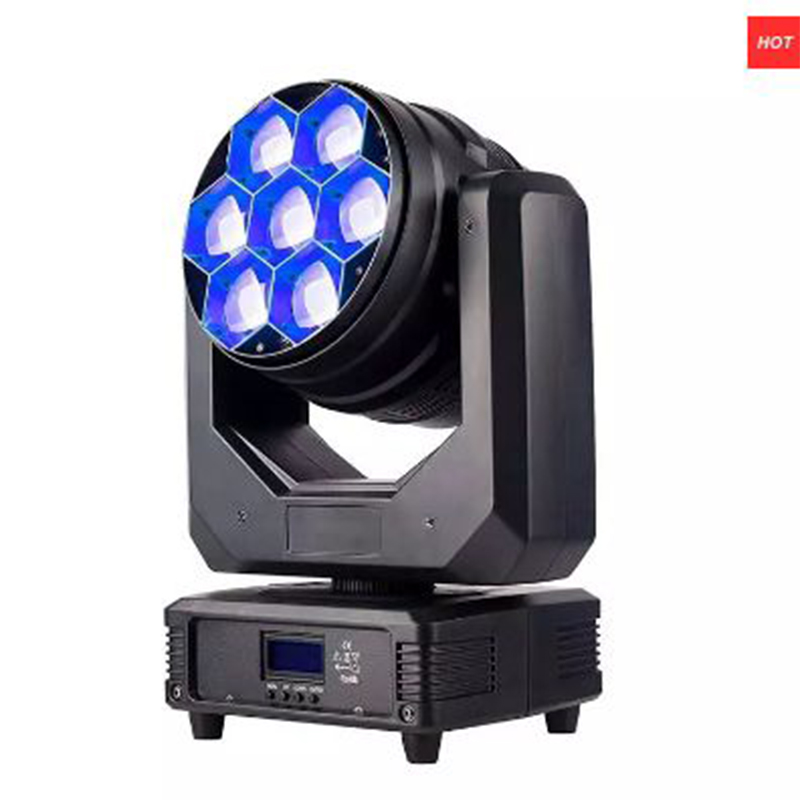

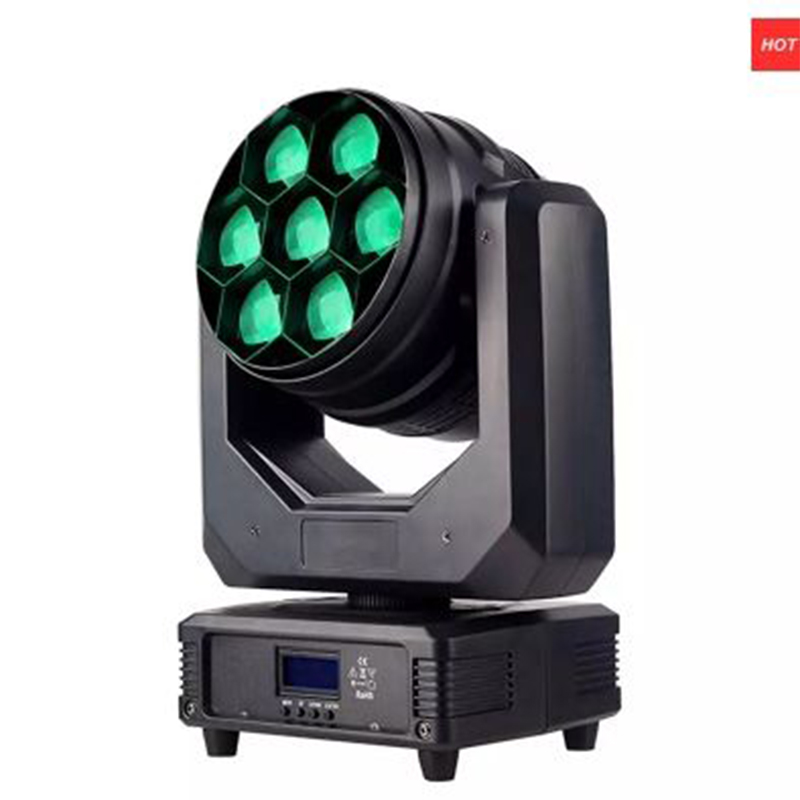

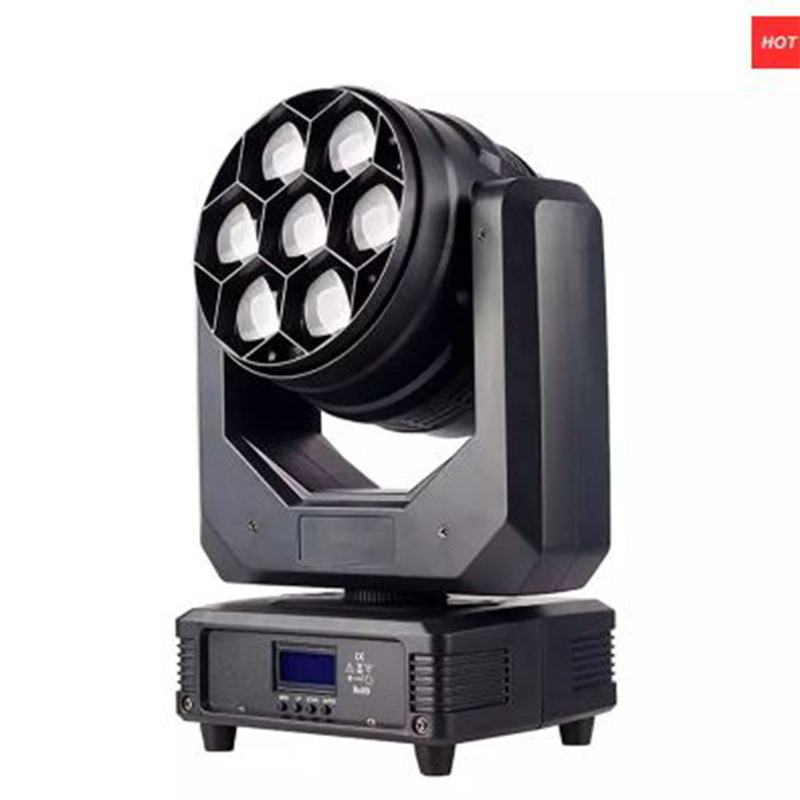

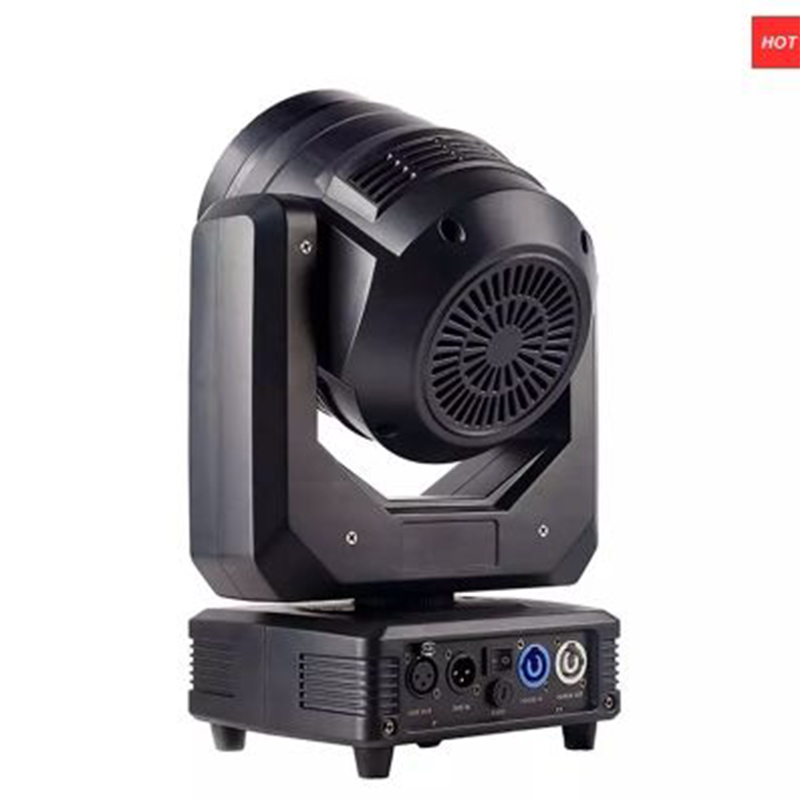

● 7pcs 40W Stage Wash Led Moving Head Light is RGBW Osram LED moving head, a high-power wash light. This model is fitted with 7*40W Osram LED. It features a wide wash range from 6°to 45°, 16 bit dimming,with four optional dimming curve models, pixel effects and RDM compatibility.
● The product features include variable speed closing light/strobe effect, built-in various self-propelled programs and macro function effects, which is simple and easy to use.
● 7pcs 40W Stage Wash Led Moving Head Light is a fixture with a snap-in structure in order to ensure the integrity of the internal components. This fixture could be used for Event, performances and other professional light shows.
Features
● Extremely small, fast and powerful LED Moving Head Beam Zoom Light;
● Wide zoom range from 6degree to 45degree;
● Great built-in lighting shows programs under master/slave mode;
● Blue LCD display for easy navigation;
● Perfect for stage, theatre, TV, studio, rental and discotheques.
Light Sources
● Light Sources: 7*40W Osram RGBW LED
● Lifespan: 50000hours
● Color: RGBW colorful mixing
Power Supply
● Input Voltage: 100-220V, 50/60Hz
● Power Consumption: 250 W
Optical System
● Advanced optical system
● Beam Angle: 6°to 45°
● Dimmer: 0-100% linear dimmer
● Strobe: 1-25 times/second
Control and Program
● Display: LCD display
● Protocols: DMX512/Master-Slave/Auto Run/Music/RDM
● DMX channel: 16CH, 41CH
● Firmware Upgrade: Upgrade via DMX link
● Pan/Tilt Resolution: 16 bit
Pan & Tilt
● Pan movement: 540°
● Tilt movement: 270°
● Automatic Pan/Tilt position correction
Construction
● Body dimension: D260*W180*H335mm
● Net weight: 5.5kg
● Shell color: black
● Shell material: ABS
Working Environment
● Maximum ambient temperature: 40°C
● Maximum surface temperature: 65°C
● Minimum operating temperature: 0°C
● Cooling: Fan
● Protection rating: IP20
Standard Configuration Spare Part List
● Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)
● User manual: English version user manual
● Clamp bridge: 1 set clamp bridge
Package
● Carton Size: 310*230*420mm(1pcs)
● Gross Weight: 7kg (1pcs)
● Carton Size: 640*480*435mm(4pcs)
● Gross Weight: 29kg (1pcs)
