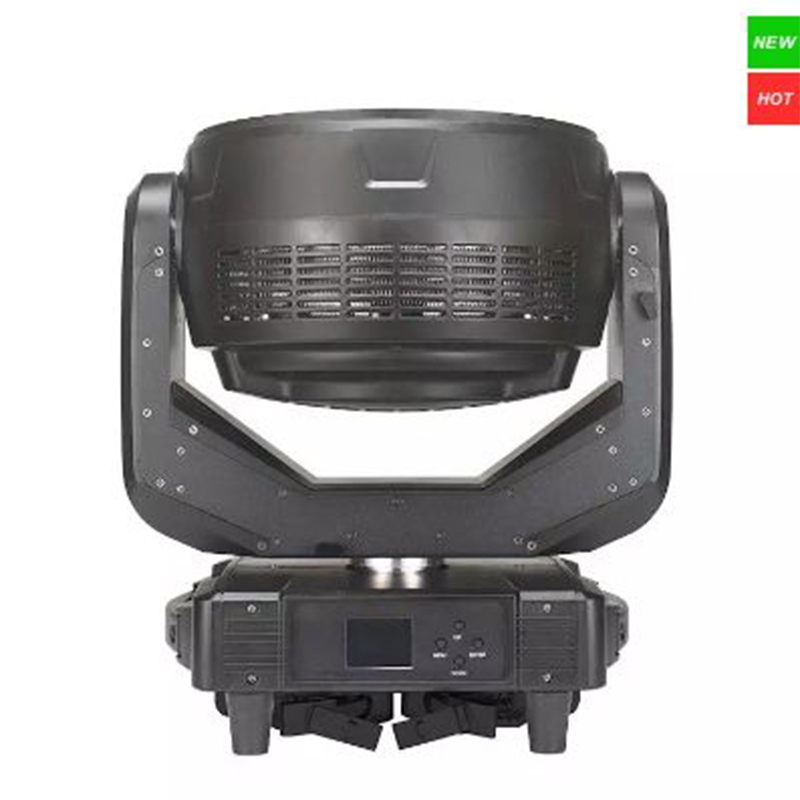

LED Wash Moving Head Light
01
Link to:
Product Introduction
● This model is fitted with 24*60W Osram LED . It features a wide wash range from 3.5°to
45°, 16 bit dimming,with four optional dimming curve models, pixel effects and RDM
compatibility.
● Its
new heat dissipation structure which combines technology of water cooling and semiconductor
refrigeration allows for rapid heat dissipation from the working temperature. Thanks to the high
efficient heat dissipation the metal structure could be replaced with lighter and stonger
industrial plastics, bringing the overall weight to 23.5kg. Instead of using the traditional
waterproof glue with associate potential risks.
● This
fixture could be used for large stadiums, large performances and other professional venues and
all-weather environment.
Features
● Wide zoom range from 3.5degree to 45degree;
● Great built-in lighting shows programs under master/slave mode;
● Blue LCD display for easy navigation;
● Perfect for stage, theatre, TV, studio, rental and discotheques..
Light Sources
● LED: 12pcs 60W 4in1 LED Osram lamps
● Lifespan: 500,000h
● Color: RGBW 4in1 colorful
Optical System
● Beam Angle: 4.5-45degree
● Dimmer: 0-100% linear dimmer
● Strobe: 1-25 times/second
Movement
● Pan(X axis): 540degree,
● Tilt(Y axis): 270degree,
Control
● Control mode: DMX-512; Mater/slave mode;RDM.
● DMX channel: 20/24/32/44CH
● Display: 2.4-inch TFT color display
Power Supply
● Related voltage: AC90V-250V, 50/60Hz
● Related power: 750W@230V, power factor=0.98
● Output power: 150W
Construction
● Body dimension: D362*W240*H500mm
● Net weight: 16.8kg
● Shell color: black
● Shell material: ABS
Working Environment
● Working temperature: -25-40℃
● Cooling: Fan
● Total heat dissipation: 1350 BTU/h (calculated)
● Protection rating: IP20
Standard Configuration Spare Part List
● Cable: 1pc 3-pin DMX cable, 1pc power cable
with plug(America standard, Euro standard, or other standard)
● User manual: English version user manual
● Clamp bridge: 1 set clamp bridge
Optional Configuration Spare Parts List
● Clamps: different style clamps optional
● Safety rope: different size safety ropes
optional
Package Information
● Product Size: 434*298*530mm
● Product Weight: 22 kg
● Flight Case Size: 800*495*720mm
● Flight Case Weight: 74kg
