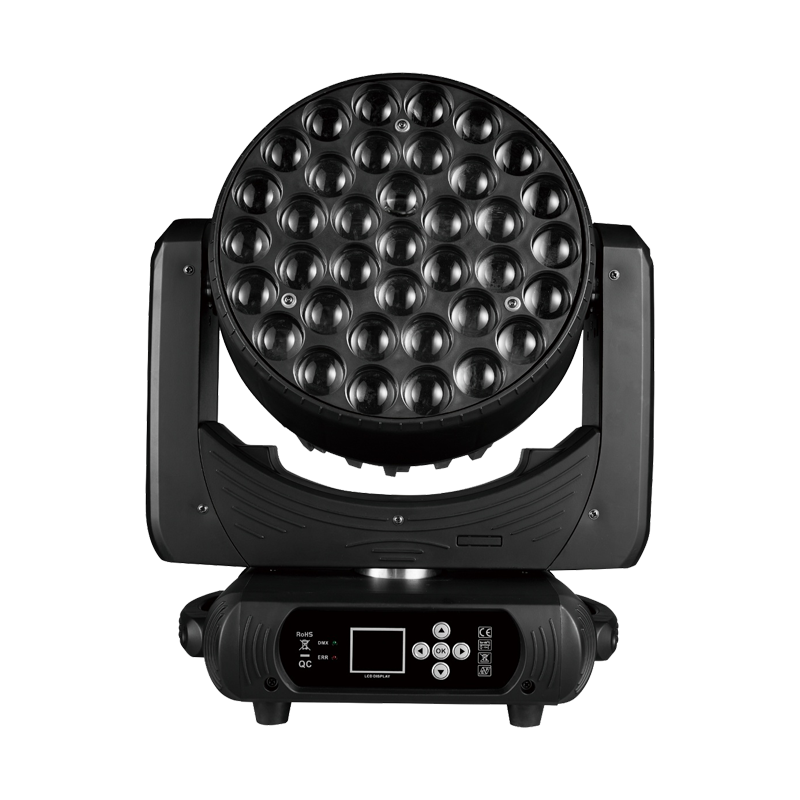

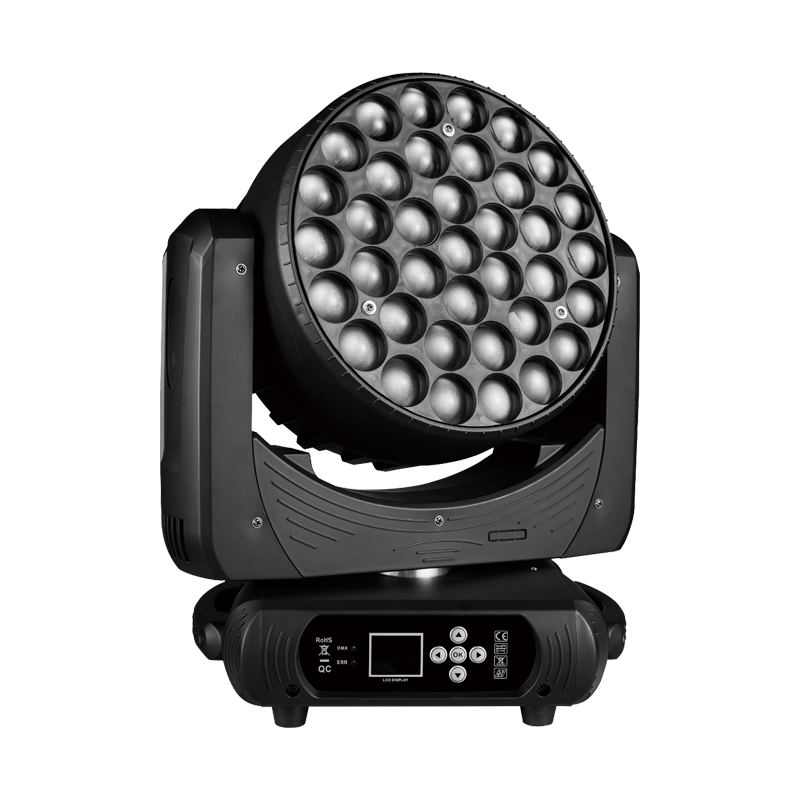

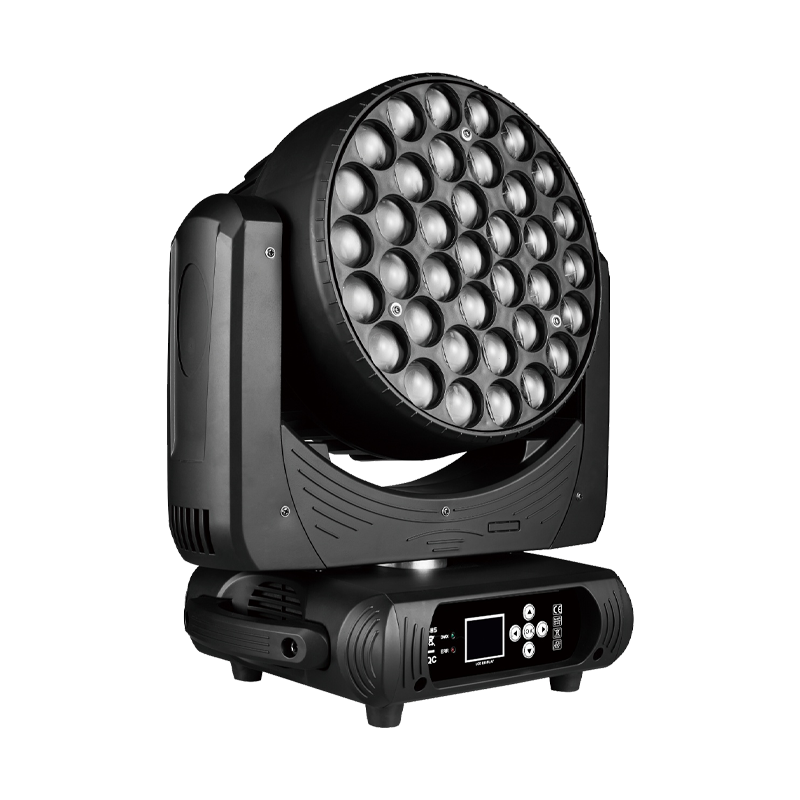

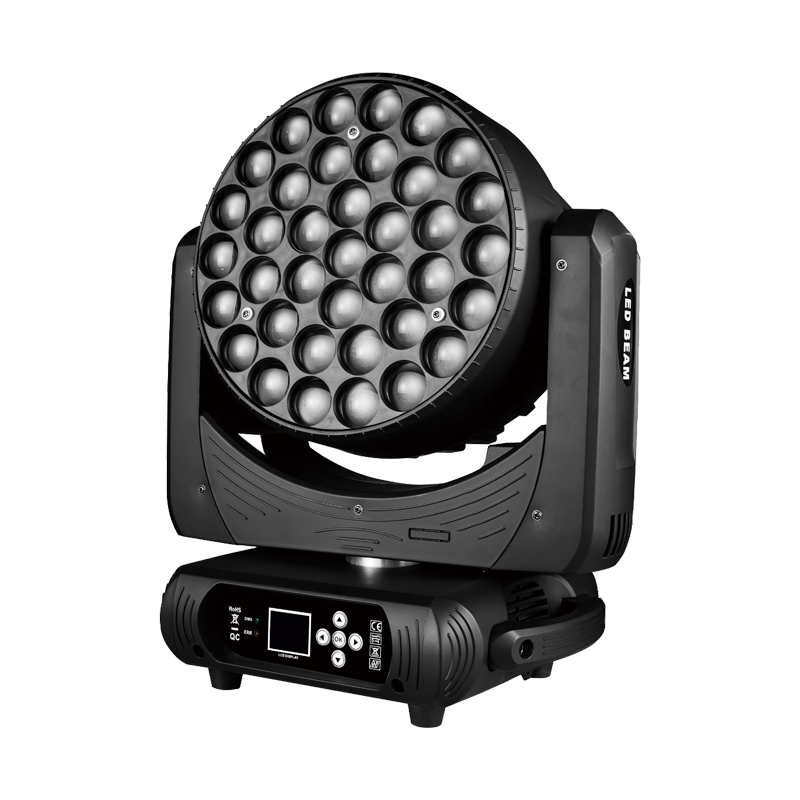

LED Wash Moving Head Light
01
Link to:
Product Introduction
● Experience the versatility and power of our 500W four-in-one LED light, designed to illuminate any event or performance with stunning clarity and creativity. This light features a robust power system that operates on AC100V-240V at 50/60Hz, ensuring compatibility with a wide range of power sources. With 37 high-brightness 15W LED bulbs arranged, it delivers an impressive light output that is perfect for a variety of lighting applications.
● Control this versatile light with ease through multiple options, including DMX512, standalone mode, master-slave setup, and sound activation, all while benefiting from RDM capabilities for enhanced device management. With a wide range of DMX channel configurations (37ACH, 21CH, 15CH, 10CH, 37BCH, 18CH, 25CH, and 46CH), you can customize your lighting setup to suit any event or performance. The 32-bit linear dimming from 0-100% and a strobe frequency range of 1-30Hz add further flexibility to your lighting designs, allowing for smooth transitions and dynamic effects.
● This light is made of heat-resistant plastic and metal, with a smooth black appearance, that blends into any environment. Its IP20 rating ensures protection against solid objects and provides a degree of safety for indoor use. For easy integration into your lighting system, it comes with DMX512 input and output connections, as well as AC power input and output options. Measuring 30x40x43 cm and weighing just 13.15 KG, this light is both portable and powerful, making it an ideal choice for professional lighting technicians and event planners alike.
Features
●Moving head+dyeing+beam+explosion flash
● Versatile Lighting Capabilities: Combining the functions of a moving head, color washer, and focusable spotlight, this light offers a multitude of lighting effects and configurations. Its ability to serve multiple purposes makes it an excellent choice for a wide range of events and performances, from concerts and theater productions to corporate events and weddings.
● Advanced Control Options: With support for DMX512, standalone mode, master-slave setup, and sound activation, this light provides a high degree of control and flexibility. The inclusion of RDM capabilities allows for easy device management and monitoring, ensuring smooth and efficient operation during any event.
● Smooth and Reliable Performance: Featuring 32-bit linear dimming from 0-100% and a strobe frequency range of 1-30Hz, this light delivers smooth and reliable performance. The ability to adjust the light output and strobe speed with precision allows for dynamic lighting effects that can enhance the overall visual appeal of any event or performance.
Light Sources
● LED: 37pcs 15W 4in1 LED Osram lamps
● Lifespan: 500,000h
● Color: RGBW 4in1 colorful
Optical System
● Beam Angle: 5°-60°
● Dimmer: 32Bit 0-100% linear dimmer
● Strobe: 1-30Hz
Movement
● Pan(X axis): 540degree,
● Tilt(Y axis): 270degree,
Control
● Control mode: DMX-512; Mater/slave mode;RDM.
● DMX channel: 37ACH、21CH、15CH、10CH、37BCH、18CH、25CH、46CH
● Display: LED display screen, displaying in both Chinese and English
Power Supply
● Related voltage: AC90V-250V, 50/60Hz
● Related power: 500W@230V
Construction
● Body dimension: D300*W400*H430mm
● Net weight: 13.15kg
● Shell color: black
● Shell material: ABS
Working Environment
● Working temperature: -25-40℃
● Cooling: Fan
● Total heat dissipation: 1350 BTU/h (calculated)
● Protection rating: IP20
Standard Configuration Spare Part List
● Cable: 1pc 3-pin DMX cable, 1pc power cable
with plug(America standard, Euro standard, or other standard)
● User manual: English version user manual
● Clamp bridge: 1 set clamp bridge
Optional Configuration Spare Parts List
● Clamps: different style clamps optional
● Safety rope: different size safety ropes
optional
Package Information
● Product Size: 30*40*43CM
● Product Weight: 13.15 kg
● Carton Size: 49*36*47CM
● Flight Case Weight: 15.1 kg
