LED Moving Head Light
01
Link to:
Product Introduction

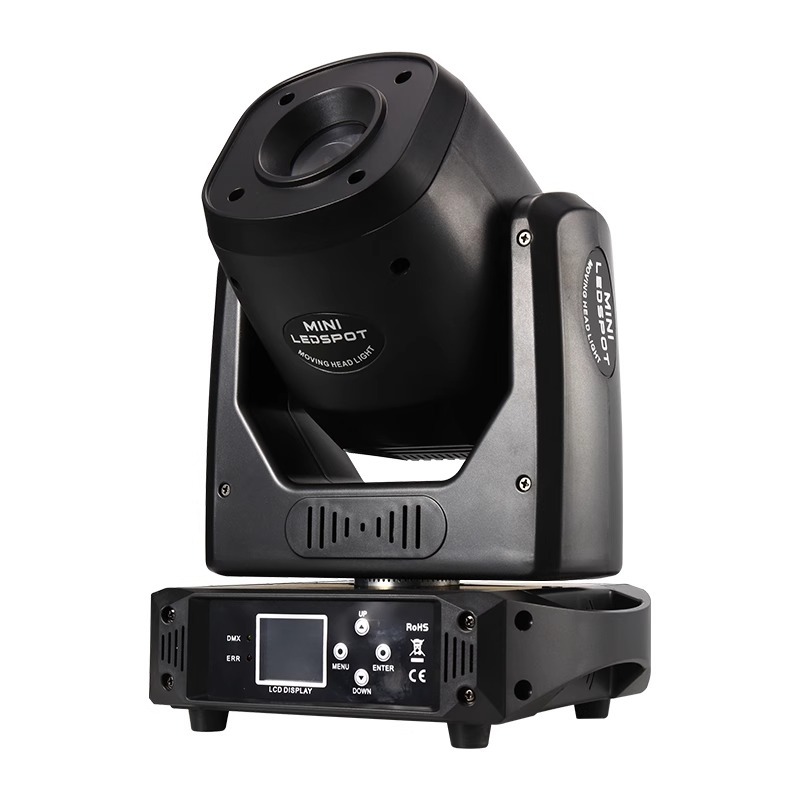

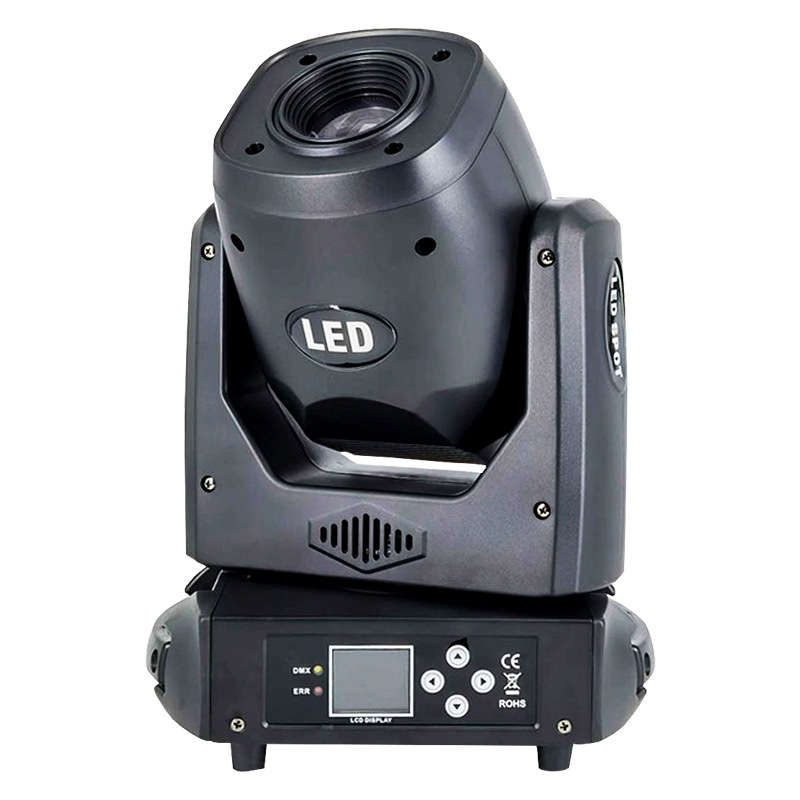

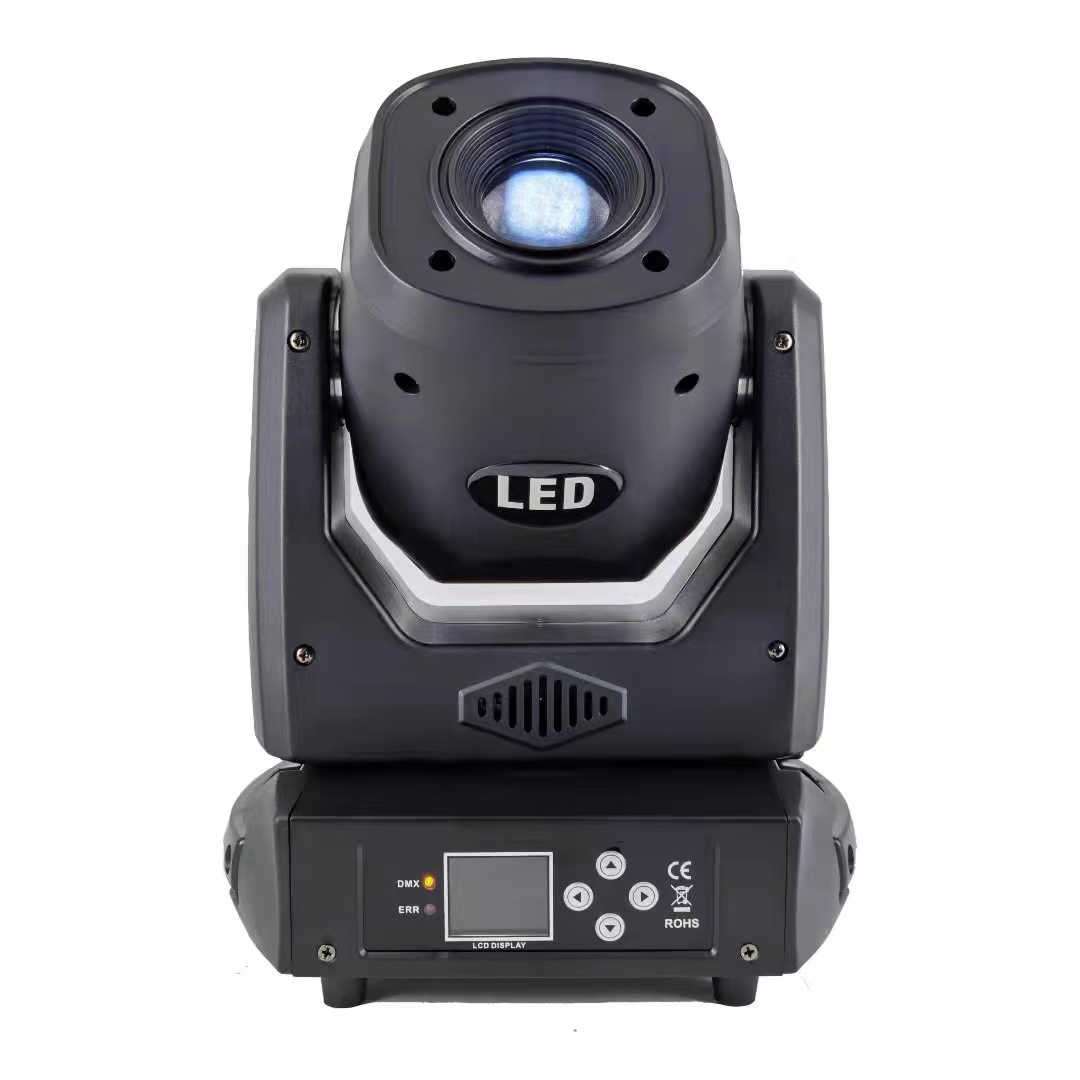

● This high-performance 150W LED moving head beam light delivers exceptional brightness and versatility for dynamic stage productions. Powered by a robust 100W white LED chip with a 50,000-hour lifespan, it ensures energy-efficient, long-lasting operation. Featuring a 7-color wheel + white + rainbow effect and 6 glass gobos, it creates stunning visual combinations, enhanced by a bi-directional rotating prism for multi-layered beam effects. With smooth 0-100% dimming, adjustable strobe (0-10Hz), and wide 540° pan / 270° tilt rotation, it offers precise control for complex lighting choreography.
● Designed for seamless integration, the fixture supports DMX512 control via 3-pin XLR (15 channels) and includes built-in programs for standalone operation or sound-activated synchronization. Its compact 350×270×200mm housing combines portability with professional-grade durability, ideal for mobile setups.
● Perfect for: Nightclub beam shows, live concerts, theater stages, wedding events, and architectural lighting. Whether creating sharp beam patterns, vibrant color washes, or synchronized effects, this light adapts effortlessly to venues requiring high-impact, reliable illumination.
Features
●Color palette: One color palette, 7 colors+white light, adjustable speed rainbow effect
●Design: High-Temp Plastic, Metal, Black Finish, IP20 Rated
●Connectivity: DMX512 Input/Output, AC Power Input/Output
Light Sources
● LED: 100W LED Light Bead
● Lifespan: 500,000h
● Color: 7 colors+white light
Optical System
● Channel: 14 channels
● Dimmer: 0-100% linear dimmer
● Strobe: 1-30Hz
Movement
● Pan(X axis): 540 degrees+16 bit fine-tuning
● Tilt(Y axis): 270 degrees+16 bit fine-tuning
Control
● Control mode: DMX-512; Mater/slave mode;RDM.
● DMX channel: CH22,CH23,CH25,CH36,CH78,CH92,CH97,CH99,CH101
● Display: LED display screen, displaying in both Chinese and English
Power Supply
● Related voltage: AC90V-250V, 50/60Hz
● Related power: 150W@100-240V
Construction
● Net weight: 6kg
● Shell color: black
● Shell material: ABS
Working Environment
● Working temperature: -25-40℃
● Cooling: Fan
● Protection rating: IP20
Standard Configuration Spare Part List
● Cable: 1pc 3-pin DMX cable, 1pc power cable
with plug(America standard, Euro standard, or other standard)
● User manual: English version user manual
● Clamp bridge: 1 set clamp bridge
Optional Configuration Spare Parts List
● Clamps: different style clamps optional
● Safety rope: different size safety ropes
optional
Package Information
● Product Size: 35*27*20CM
