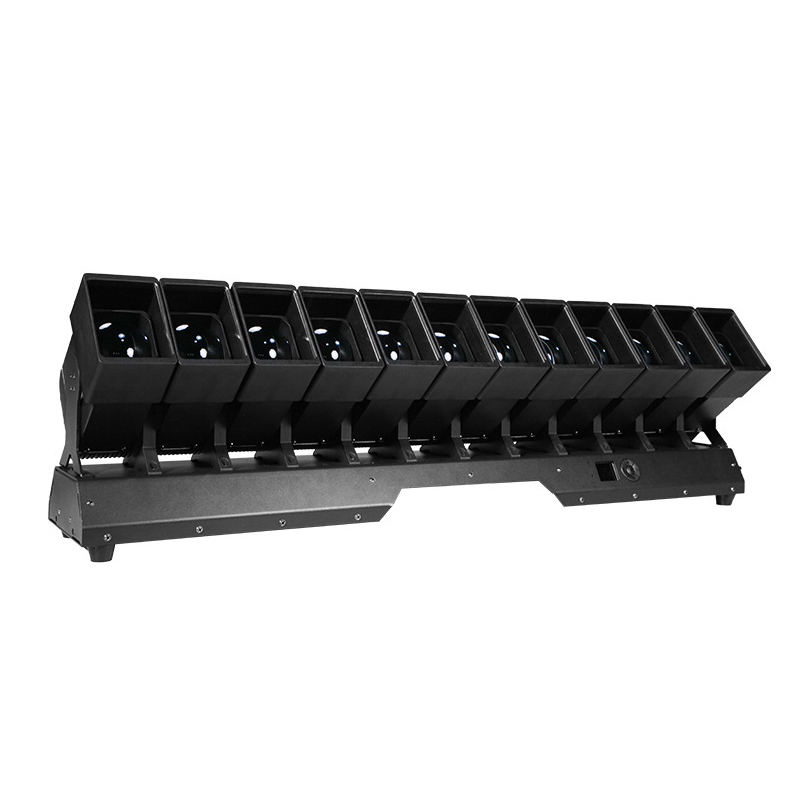

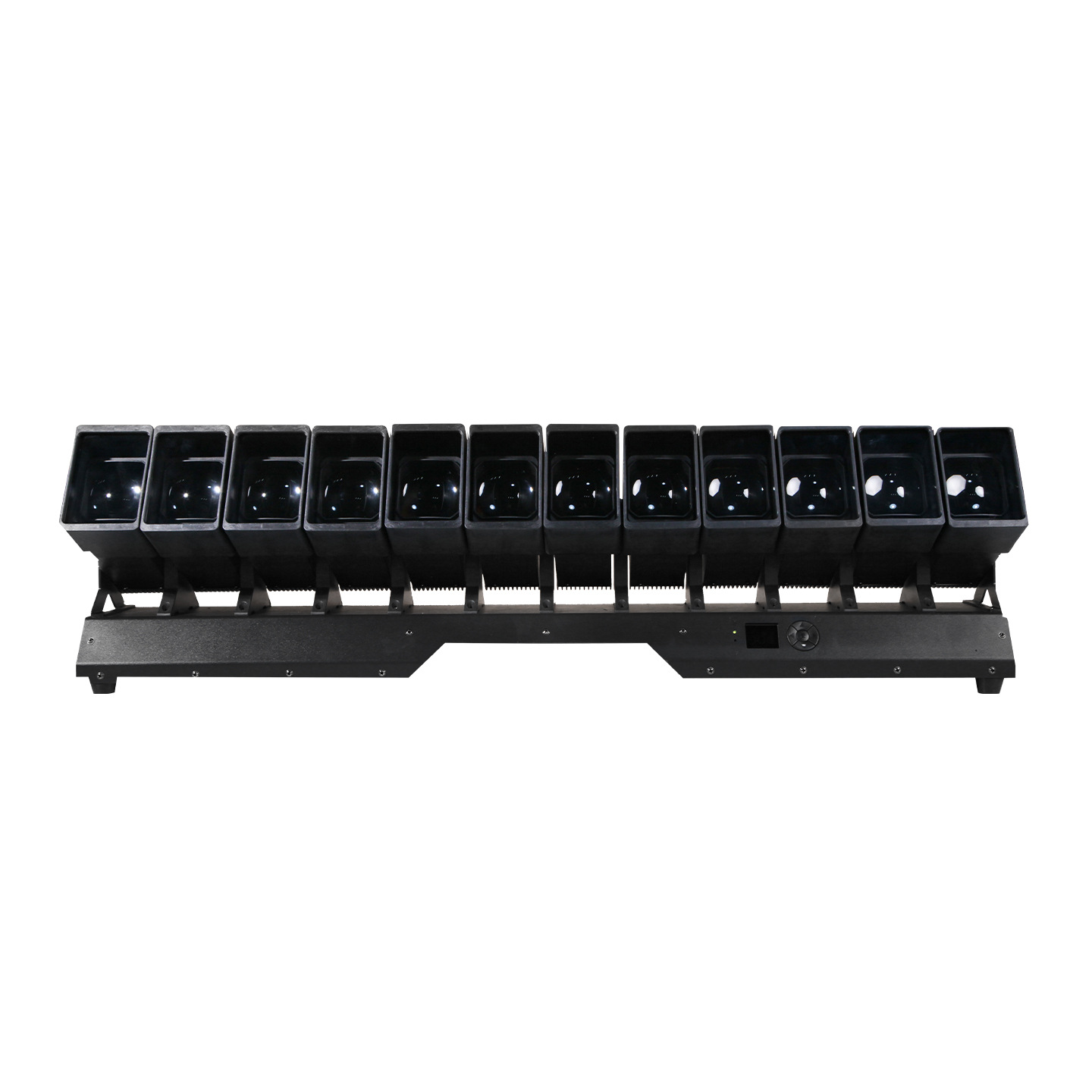

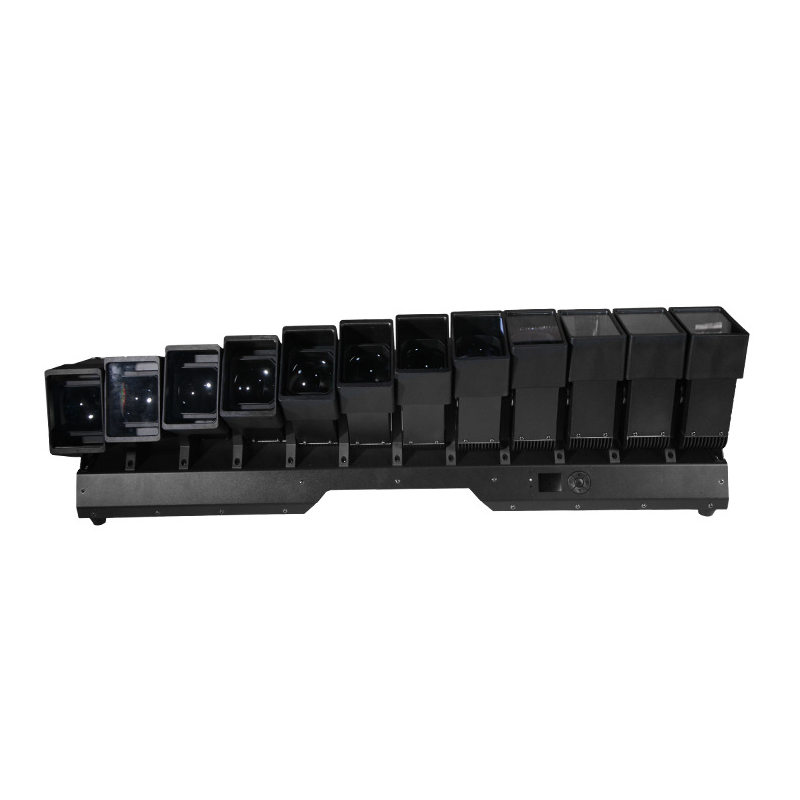

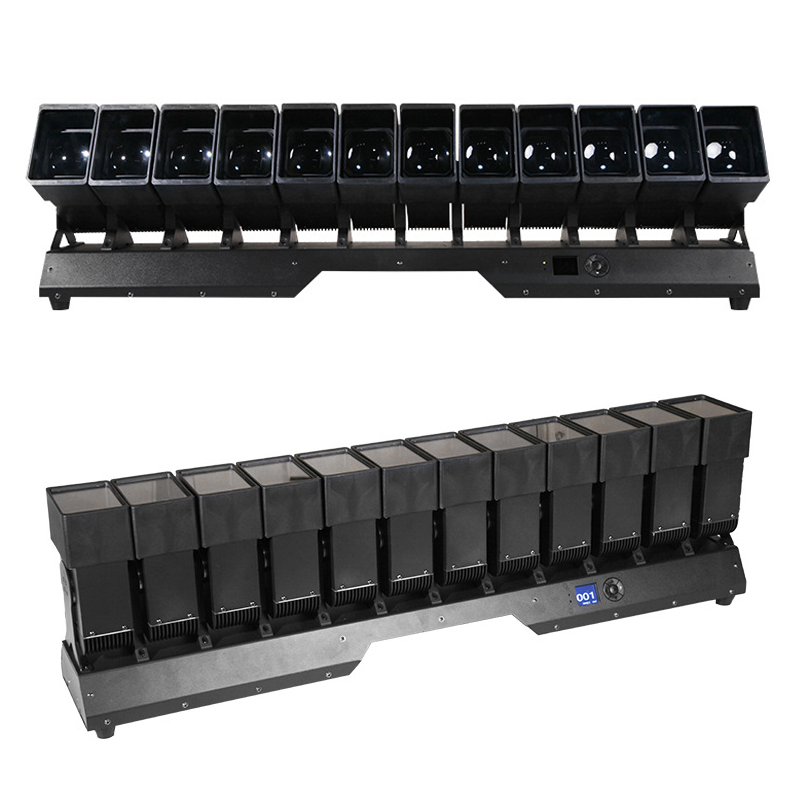

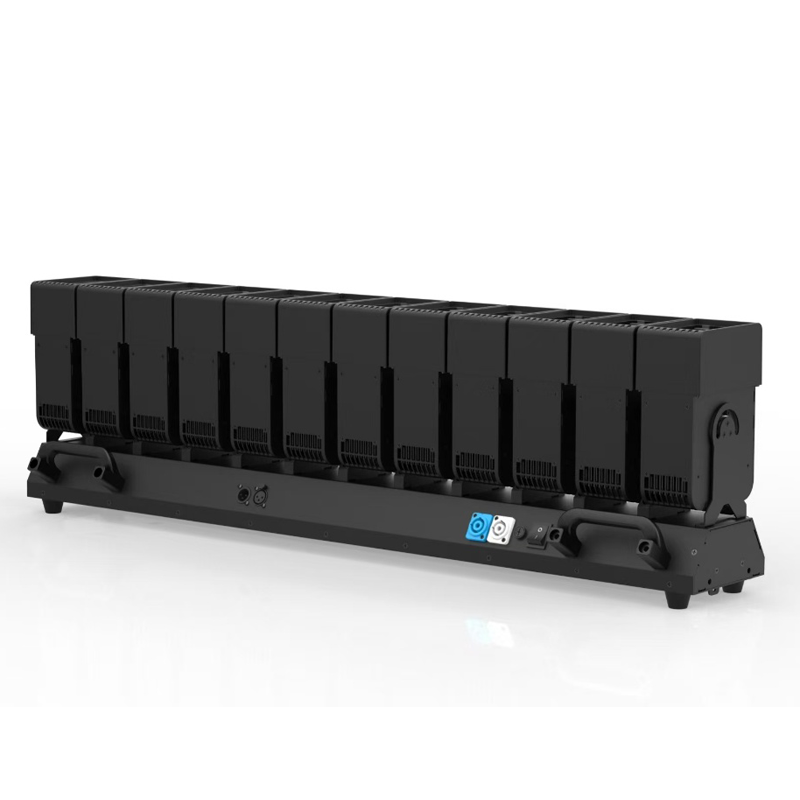

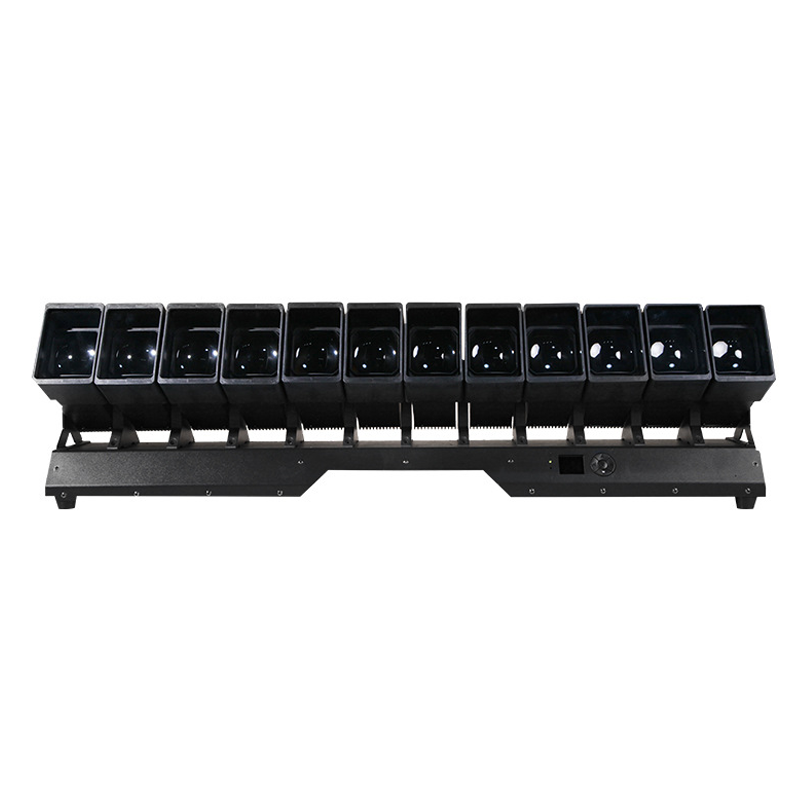

LED 12*60W RGBW 800W Single point single control+Wall Washing+beam Moving Head Light
Product Introduction
● This is a multifunctional dance table lamp that integrates three major functions: beam, dyeing, and pattern swinging. It adopts 12 high-power LED beads, has 32-bit smooth dimming, and supports multiple control modes such as DMX512, voice control, and self-propelled, with comprehensive and powerful functions.
● This product has significant advantages of being versatile and cost saving, making it very suitable for stage performances, nightclub entertainment, and commercial activities. Its sturdy metal structure and wide voltage design ensure stability and durability in various environments, making it an efficient and cost-effective professional lighting solution.
Features
●Triple effect integration, powerful functionality: Integrating three major functions: beam, dyeing, and pattern swinging. A single light bead can achieve multiple lighting effects, greatly simplifying rental inventory and on-site hoisting layout, providing unprecedented lighting expression and flexibility for the stage.
●High brightness and professional grade configuration: 12Pcs high-power 60W four in one LED beads bring a strong luminous flux output of up to 800W, with abundant brightness, sufficient to meet the lighting needs of medium and large stages. Professional DMX input/output and power input/output interfaces enable convenient and efficient serial connection of large light chains.
Light Sources
● LED: 16*60W LED Light Bead
● Lifespan: 500,000h
● Color: RGbW 4In1
Optical System
● Dimmer: 0-100% linear dimmer
● Strobe: 0-30Hz
Movement
● Pan(X axis): 540 degrees+16 bit fine-tuning
● Tilt(Y axis): 270 degrees+16 bit fine-tuning
Control
● Control mode: DMX-512; Mater/slave mode;RDM.
● DMX channel: CH20. CH169A. CH169B. CH53. CH101. CH155.CH179
● Display: LED display screen, displaying in both Chinese and English
Power Supply
● Related voltage: AC90V-250V, 50/60Hz
● Related power: 300W@100-240V
Construction
● Net weight: 26.5kg
● Shell color: black
● Shell material: ABS
Working Environment
● Working temperature: -20-40℃
● Cooling: Fan
● Protection rating: IP20
Standard Configuration Spare Part List
● Cable: 1pc 3-pin DMX cable, 1pc power cable
with plug(America standard, Euro standard, or other standard)
● User manual: English version user manual
● Clamp bridge: 1 set clamp bridge
Optional Configuration Spare Parts List
● Clamps: different style clamps optional
● Safety rope: different size safety ropes
optional
Package Information
● Product Size: 100*30*16.5cm
