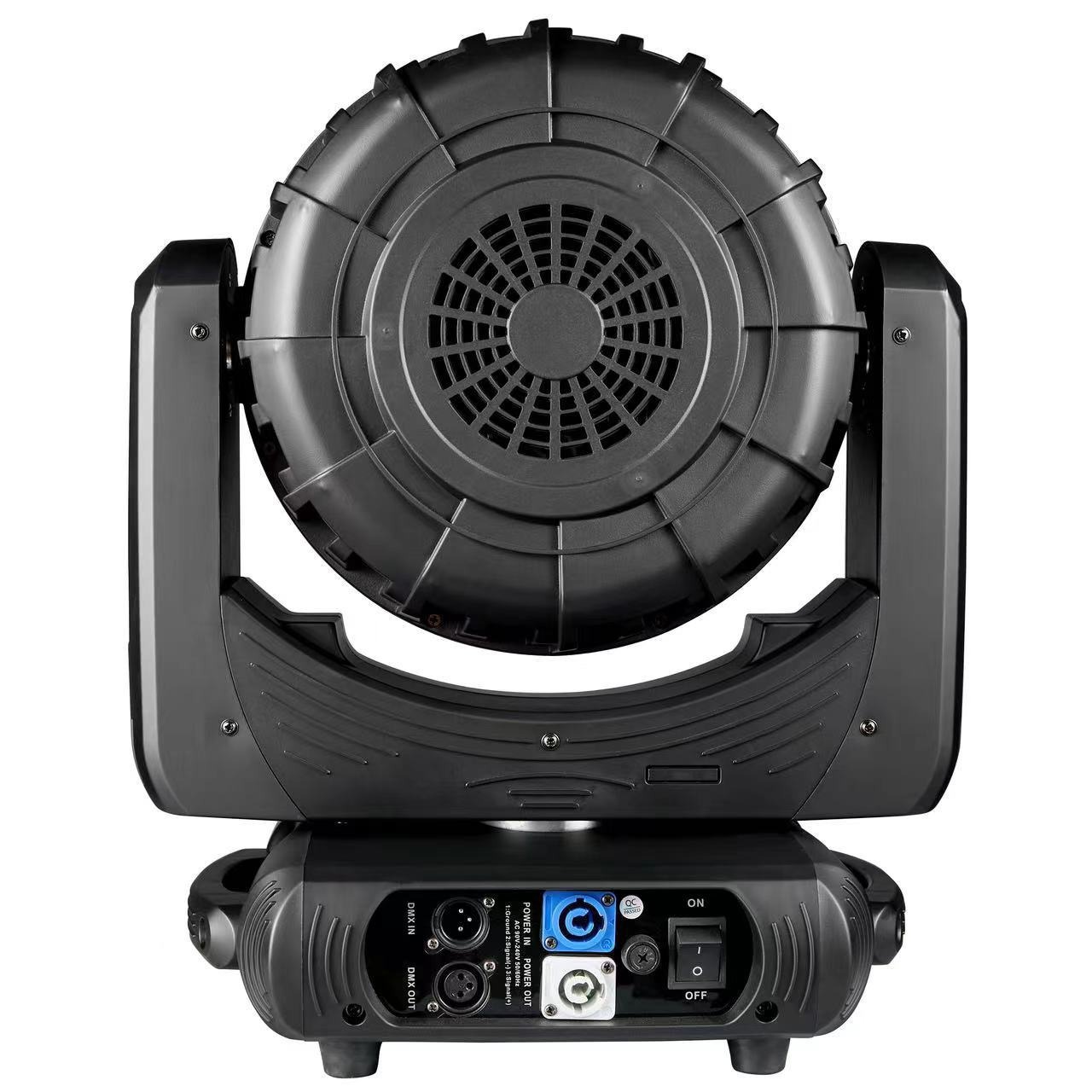

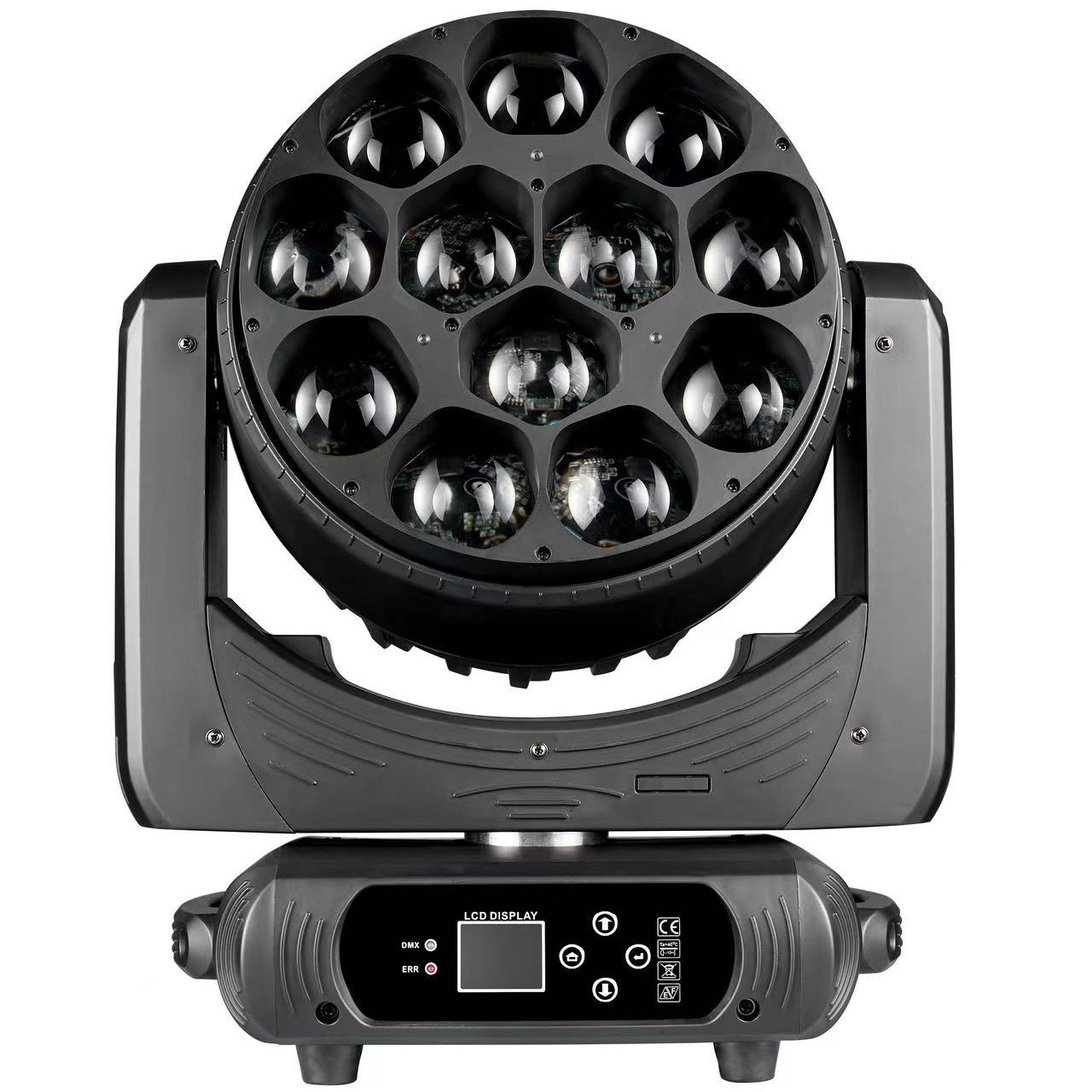

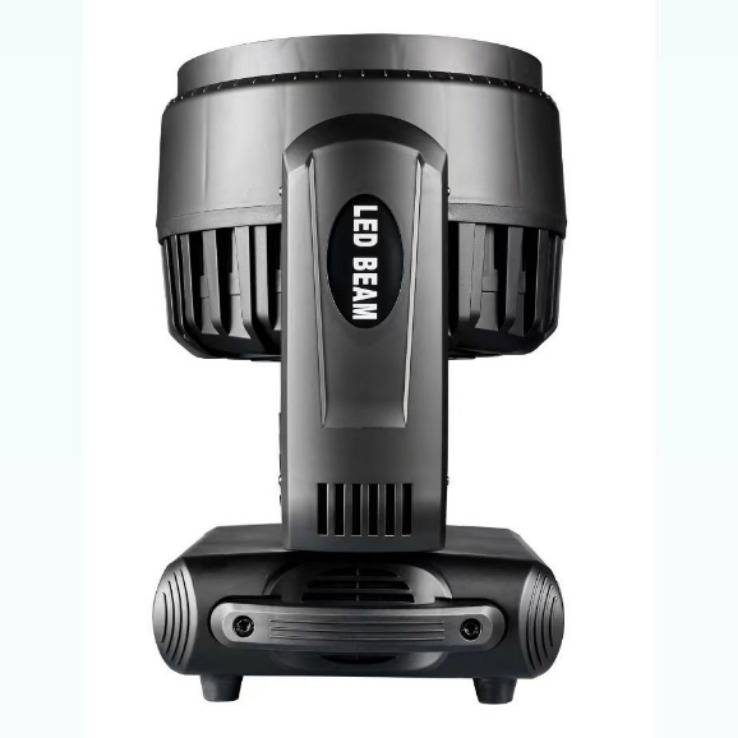

LED Moving Head Light
01
Link to:
Product Introduction
● Our LED Moving Head Light boasts a powerful 450W with 12x30W LED lamp beads, compatible with AC100V-240V at 50/60Hz. Featuring DMX512, self-driving, master-slave, voice control, and RDM, it offers 32-bit linear dimming and a strobe frequency of 1-30Hz. Crafted from high-temperature plastic and metal, it's durable and stylish, with an IP20 rating for indoor use. Connect via DMX512 and AC power inputs, weighing just 14.20KG for easy portability.
● Ideal for concerts, theater, and events, our LED Moving Head Light delivers bright, versatile, and reliable lighting solutions.
Features
●Versatility: 32-bit Linear Dimming, 1-30Hz Strobe Frequency
●Performance: 450W Power, 12x30W LED Lamp Beads
●Design: High-Temp Plastic, Metal, Black Finish, IP20 Rated
●Connectivity: DMX512 Input/Output, AC Power Input/Output
Light Sources
● LED: 12pcs 40W 4in1 LED Light Bead
● Lifespan: 500,000h
● Color: RGBW 4in1 colorful
Optical System
● Beam Angle: 6°-60°
● Dimmer: 32Bit 0-100% linear dimmer
● Strobe: 1-30Hz
Movement
● Pan(X axis): 540 degrees+16 bit fine-tuning
● Tilt(Y axis): 250 degrees+16 bit fine-tuning
Control
● Control mode: DMX-512; Mater/slave mode;RDM.
● DMX channel: CH21、CH23、CH71
● Display: LED display screen, displaying in both Chinese and English
Power Supply
● Related voltage: AC90V-250V, 50/60Hz
● Related power: 450W@100-240V
Construction
● Net weight: 14.2kg
● Shell color: black
● Shell material: ABS
Working Environment
● Working temperature: -25-40℃
● Cooling: Fan
● Total heat dissipation: 1350 BTU/h (calculated)
● Protection rating: IP20
Standard Configuration Spare Part List
● Cable: 1pc 3-pin DMX cable, 1pc power cable
with plug(America standard, Euro standard, or other standard)
● User manual: English version user manual
● Clamp bridge: 1 set clamp bridge
Optional Configuration Spare Parts List
● Clamps: different style clamps optional
● Safety rope: different size safety ropes
optional
Package Information
● Carton Size: 49*34*47CM
● Carton packaging: 19 kg
