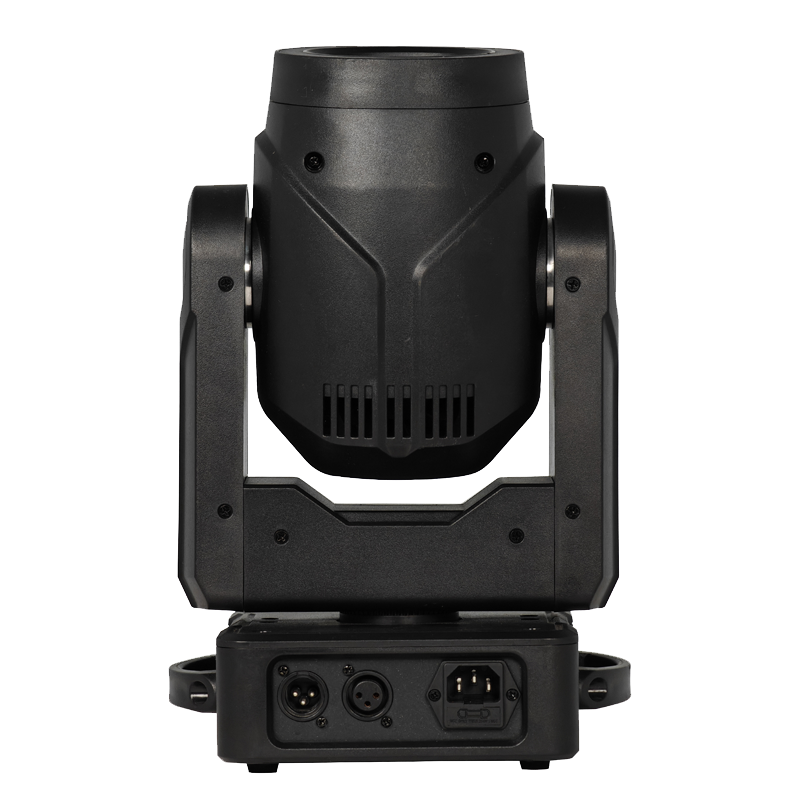

LED 5W Moving Head Laser Light
Product Introduction

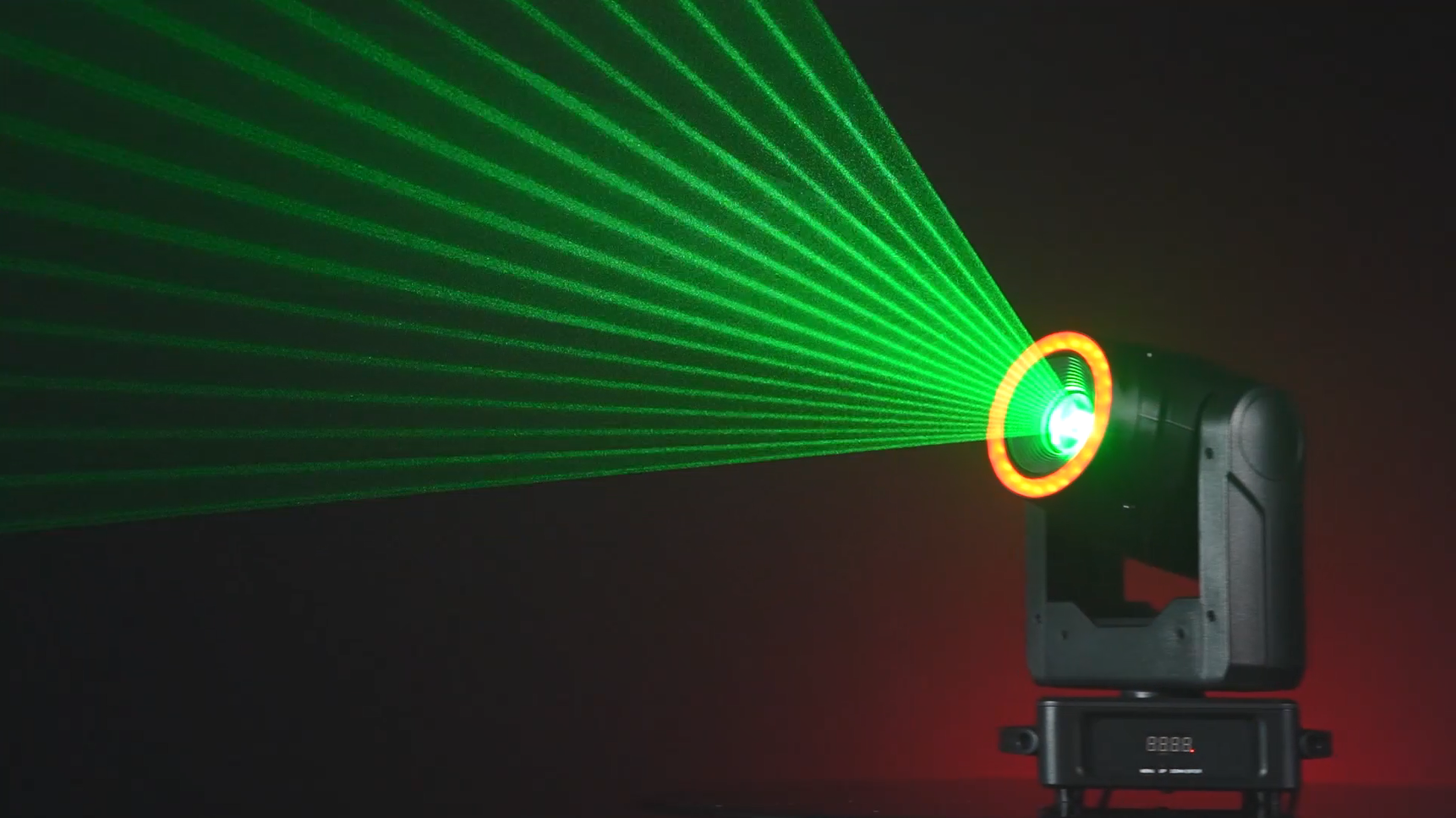

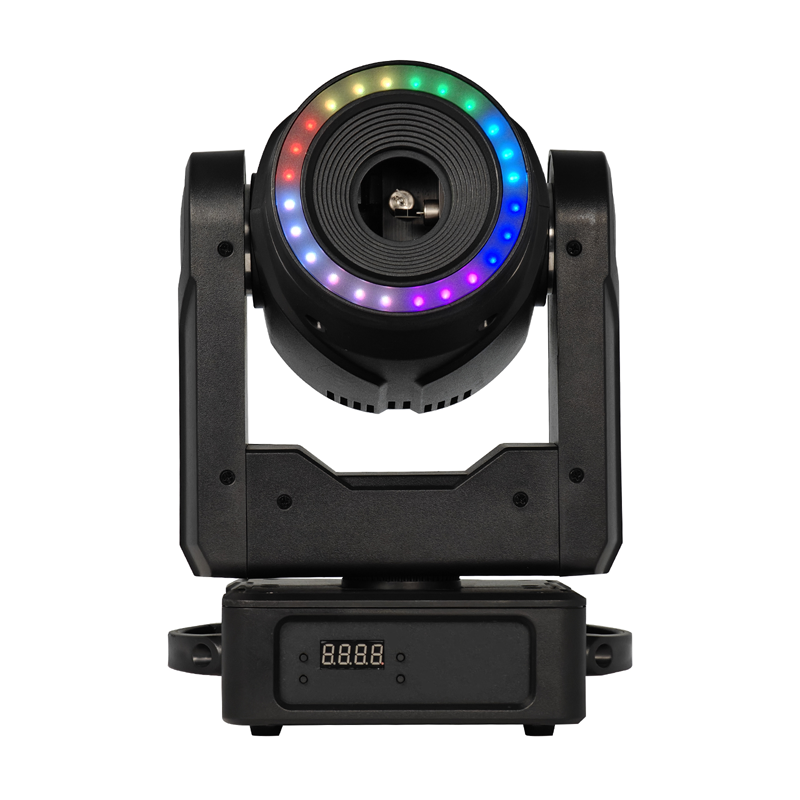

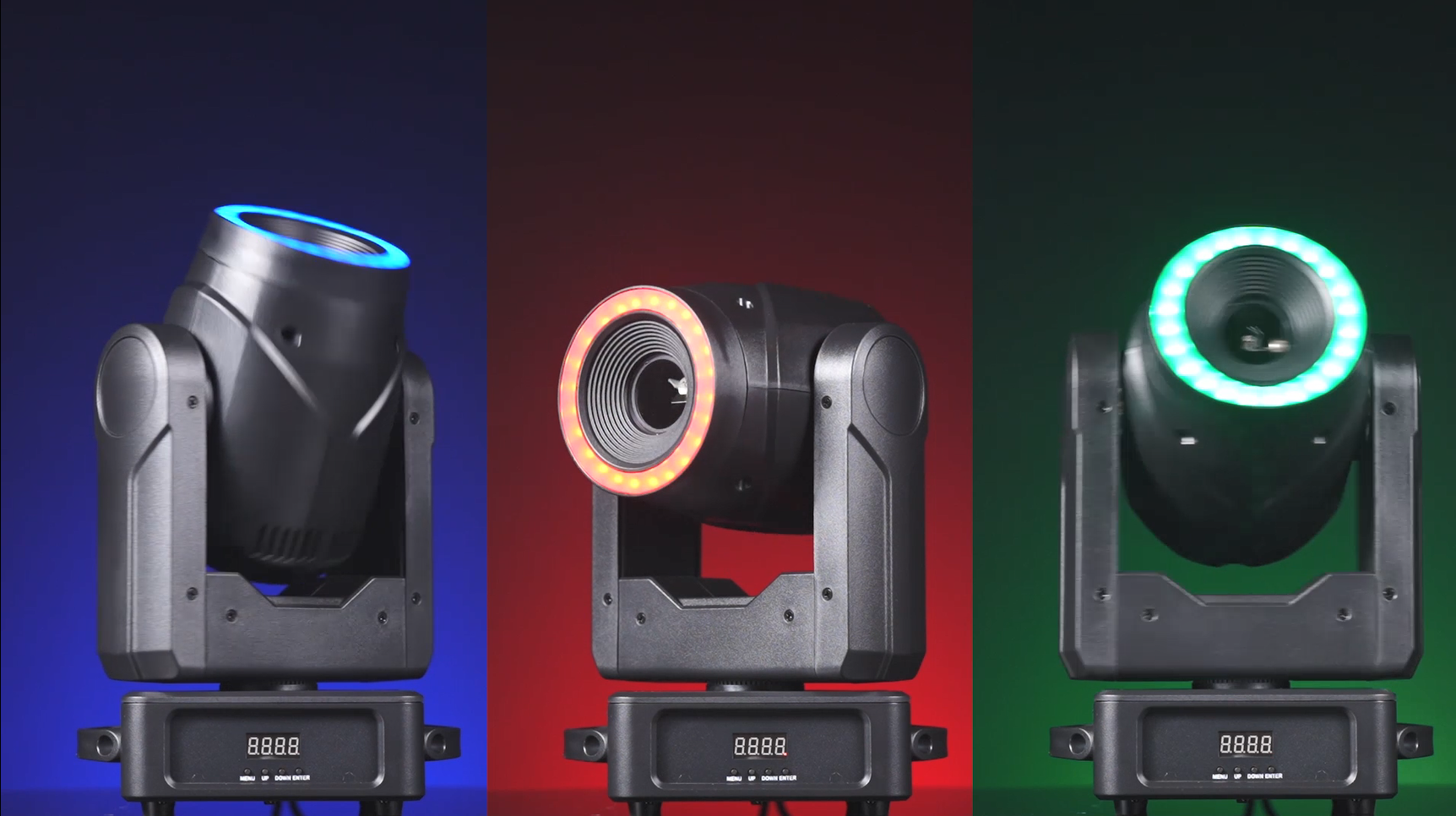

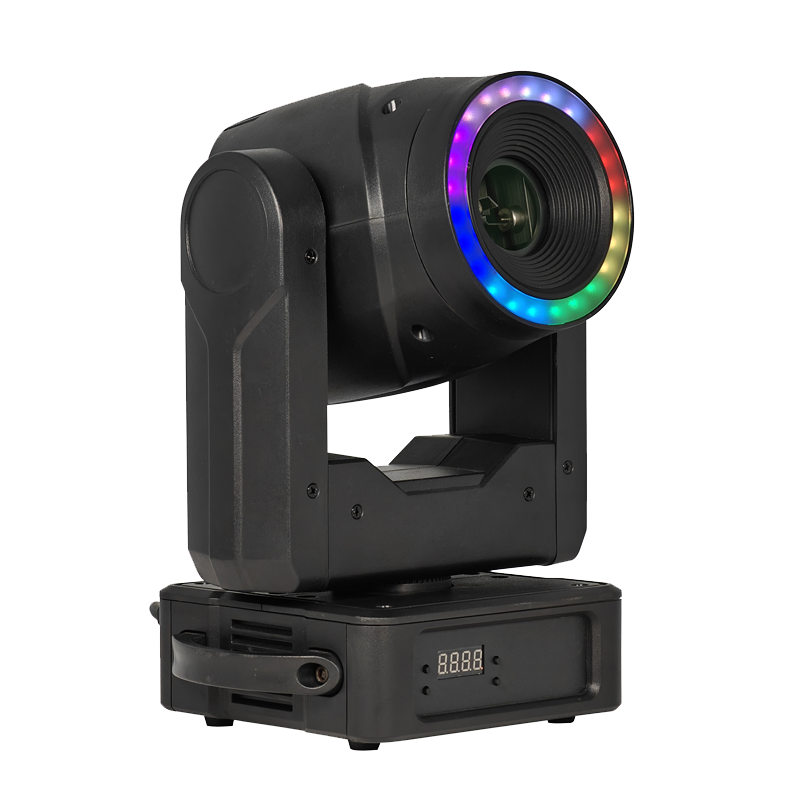

● Product Overview: The ProSeries 5W RGB Moving Head Animation Laser is a high-performance hybrid lighting solution engineered for professional venues. Combining a powerful 5W full-color laser source with a vibrant 24-segment RGB LED auxiliary ring, this fixture delivers a stunning dual-layered visual experience.

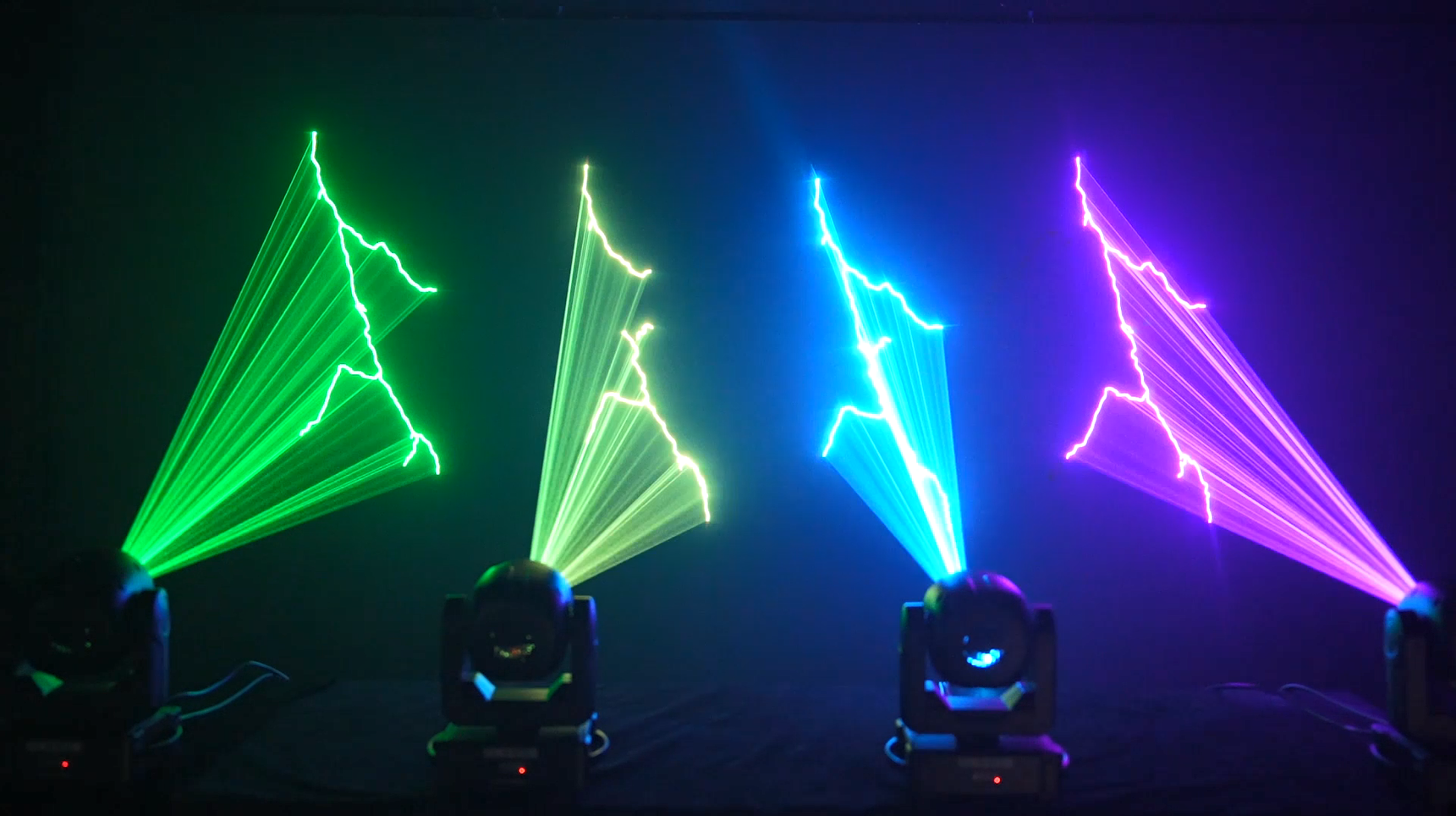

● Equipped with a precision 20K galvo scanner system, it effortlessly projects crisp text, complex logos, and fluid animations. Whether you are designing a high-energy nightclub atmosphere or a precision concert beam show, its TTL modulation and wide 50° beam angle provide the versatility needed for world-class lighting production.
Features
● Powerful RGB Laser Source: Delivers a balanced 5W output (Red: 1.5W, Green: 1W, Blue: 2.5W) for ultra-bright, vivid color mixing that cuts through fog and ambient light.

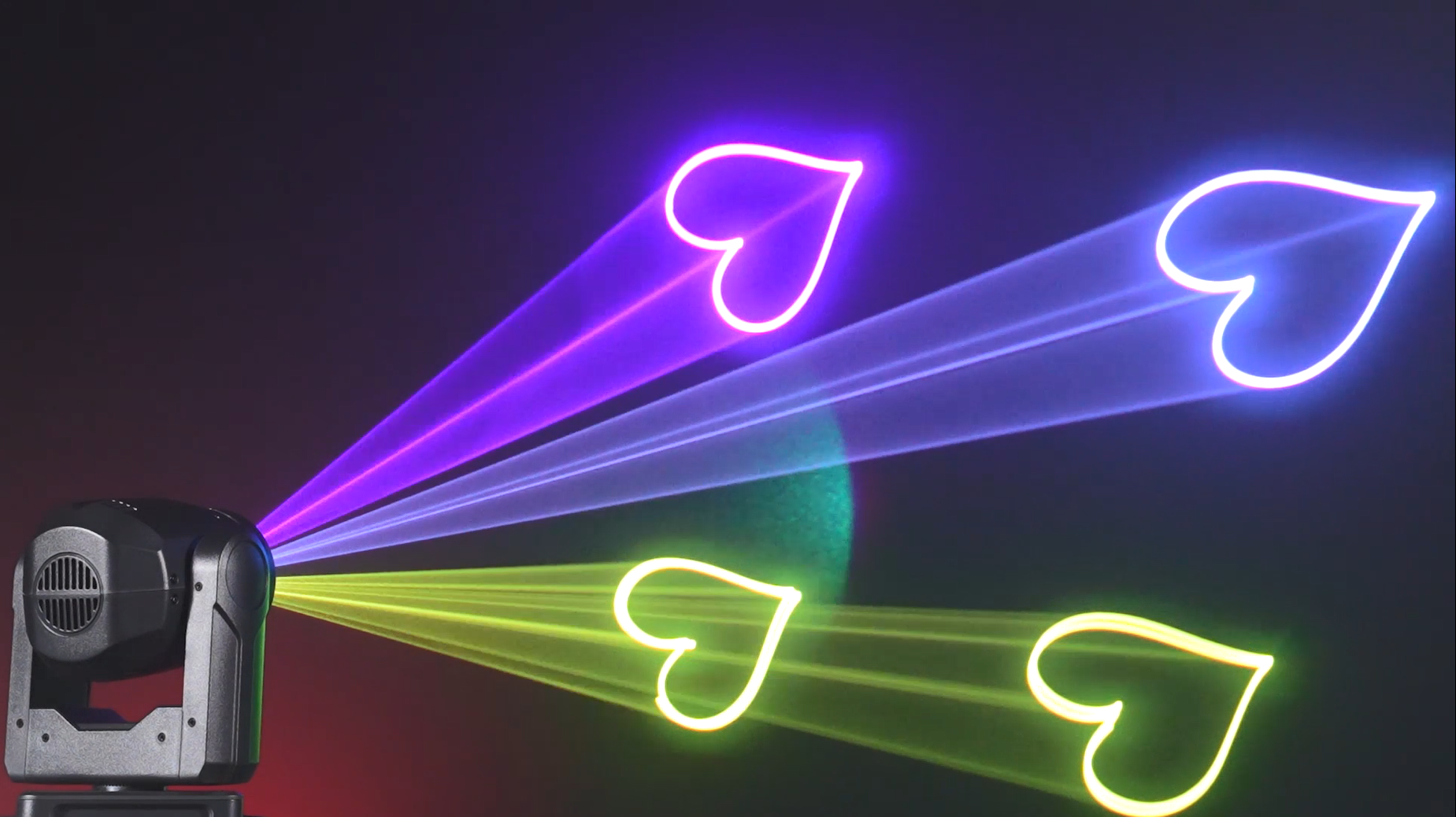

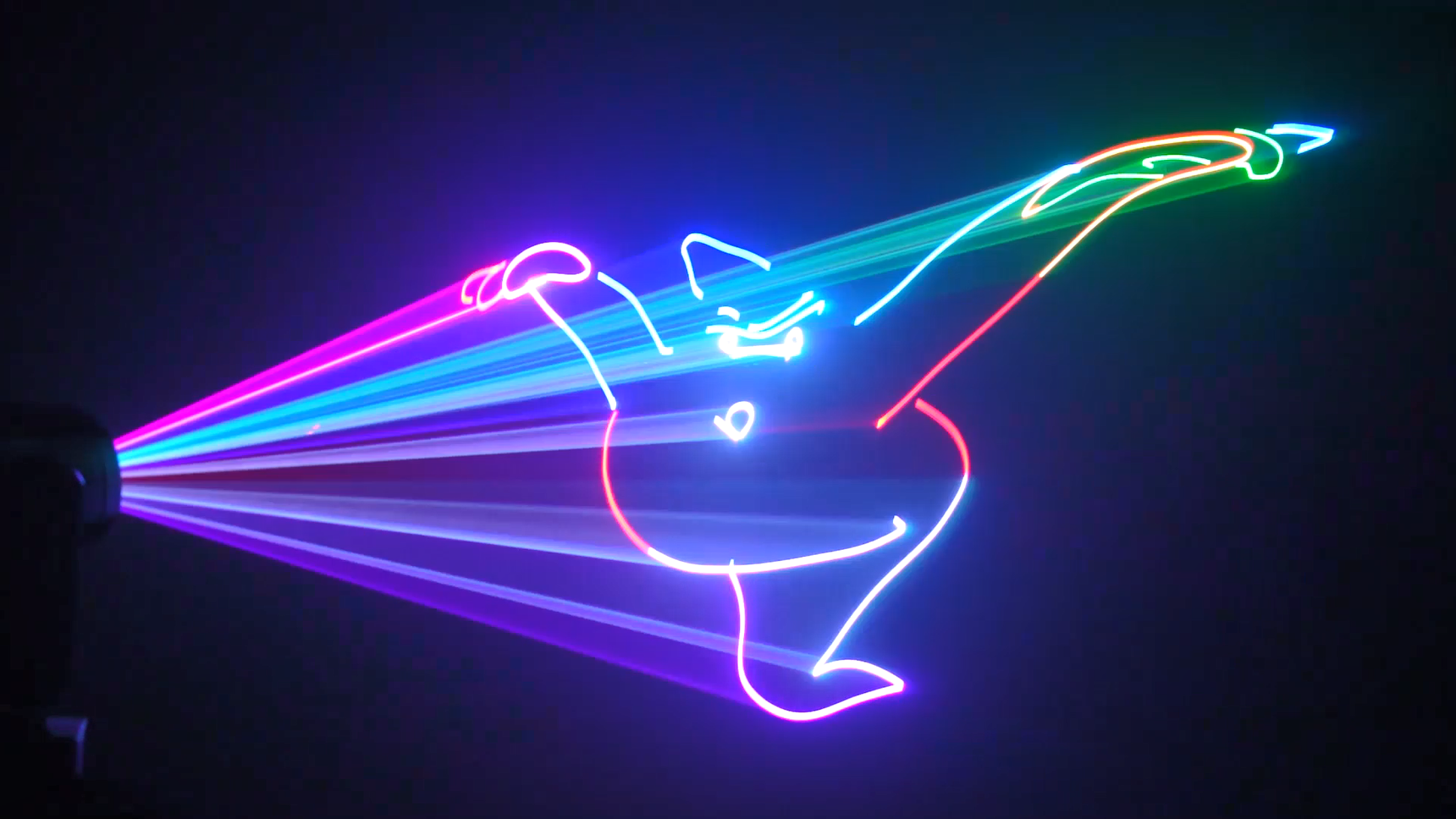

● High-Speed 20K Precision Scanning: The 20Kpps galvo system ensures smooth, flicker-free graphics, text, and 3D animation projections, perfect for corporate branding and specialized logo displays.
● Advanced TTL Modulation & Wide Angle: Experience precise dimming and color control with TTL modulation, while the Max 50° beam angle ensures massive coverage for large dance floors and stages.
● Compact & Lightweight Design: At only 4.6kg (N.W.), it is easy to rig, transport, and install in tight spaces without compromising on light output.
Light Sources
● LED: 5W full-color Laser Light + auxiliary lightBead
● Lifespan: 500,000h
● Color: RGB
Optical System
● Luminous illuminance: 4 meters, 50000 lm
● Dimmer: 0-100% linear dimmer
● Strobe: 0-30Hz
Product parameters
● Divergence angle: ＜ 1.5mrad
● Modulation mode: TTL modulation
● Cooling method: air cooling
● Lens reflectivity:>99%
Control
● Control mode: DMX-512; Mater/slave mode;RDM.
● Display: LED display screen, displaying in both Chinese and English
Power Supply
● Related voltage: AC90V-250V, 50/60Hz

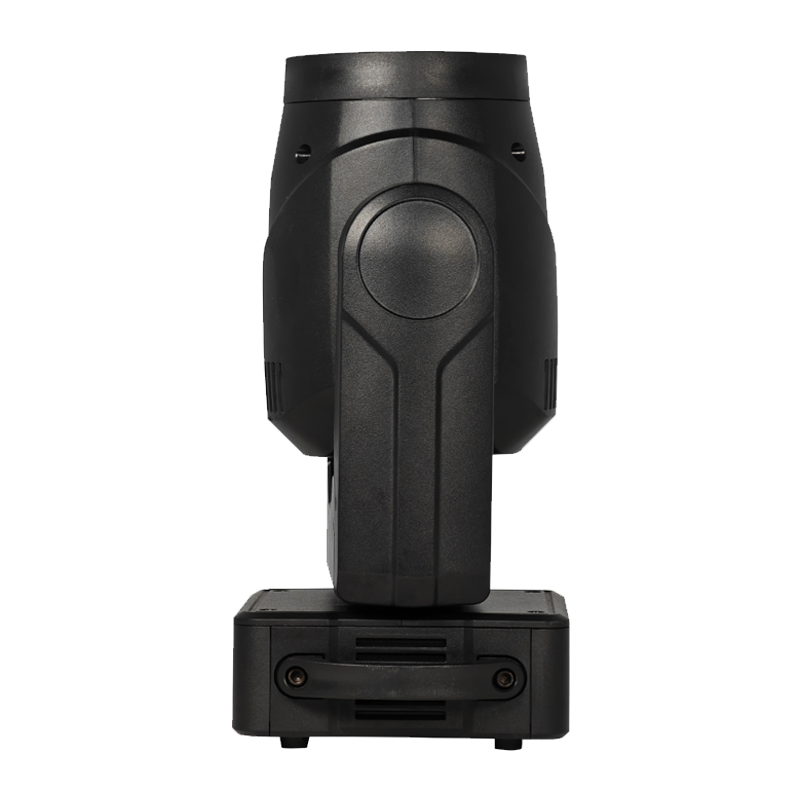

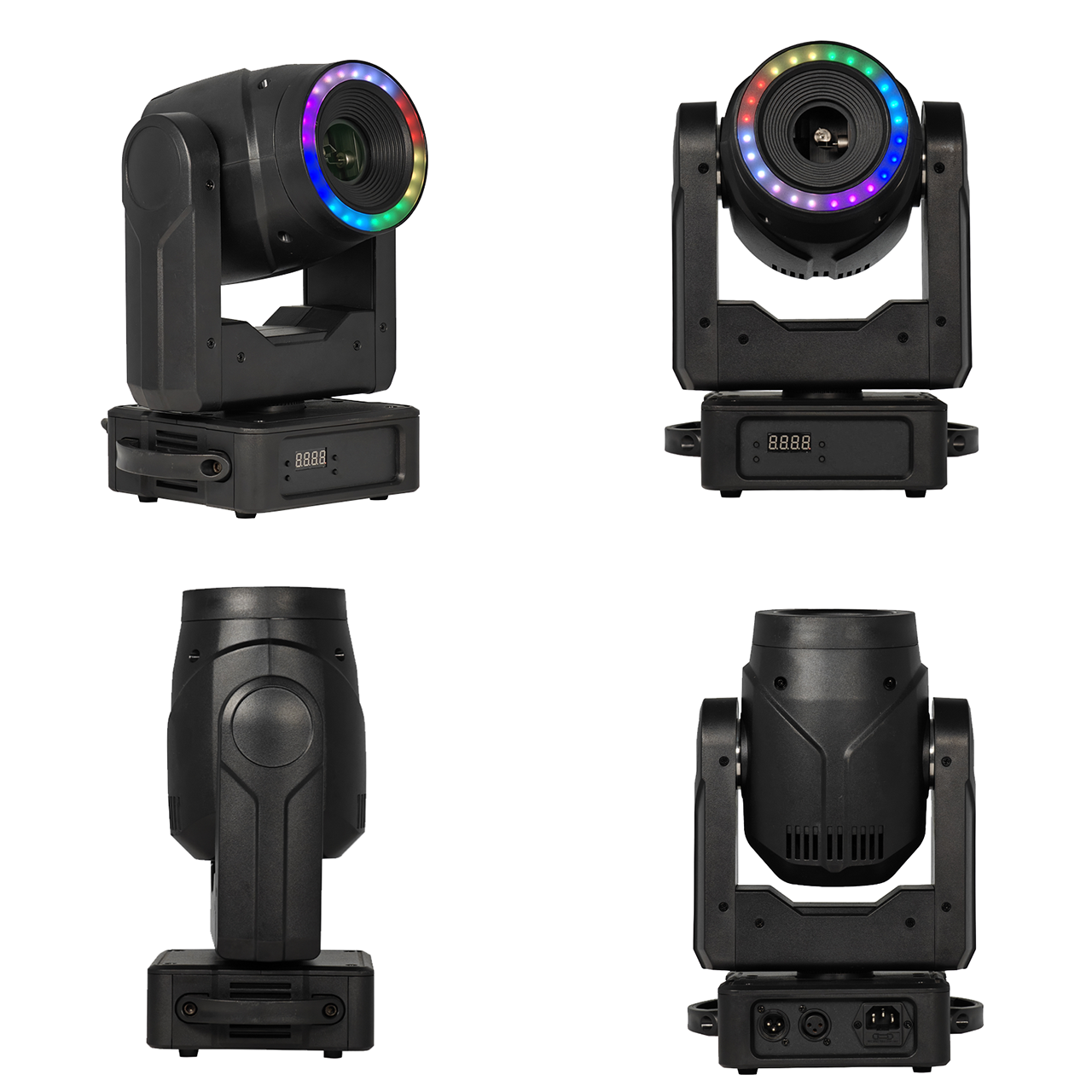

Construction
● Net weight: 4.6kg
● Shell color: black
● Shell material: ABS
Working Environment
● Working temperature: -20-40℃
● Cooling: Fan
● Protection rating: IP20
Standard Configuration Spare Part List
● Cable: 1pc 3-pin DMX cable, 1pc power cable
with plug(America standard, Euro standard, or other standard)
● User manual: English version user manual
● Clamp bridge: 1 set clamp bridge
Optional Configuration Spare Parts List
● Clamps: different style clamps optional
● Safety rope: different size safety ropes
optional
Package Information
● Package Size: 35*26*27cm
● package weight: 5.6KG
